Discrepancy in parcellation images from a given FreeSurfer output

Dear MRtrixters,
I am working with HCP data, and have generated two parcellation images along with a 5TT (hsvs) image. All three images have been generated using the same FreeSurfer outputs. The parcellation images include:

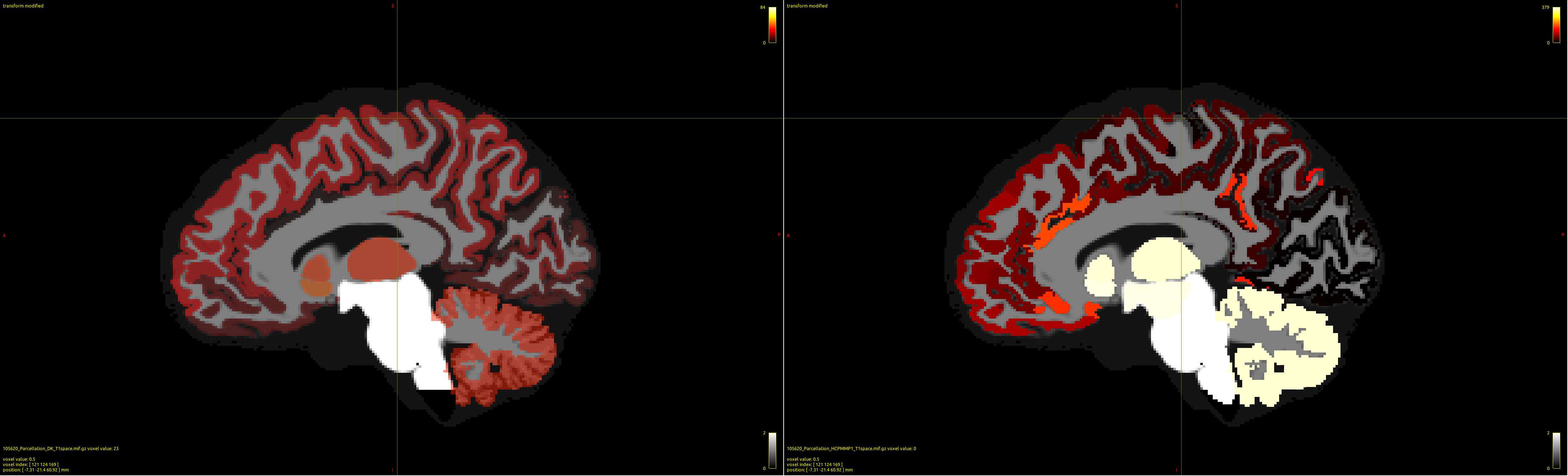

I have noticed that the cortical ribbon in the DK parcellation image matches up with the cortical ribbon in the 5TT image (attached, left figure). However, the cortical ribbon in the HCPMMP1 image has a few (possibly problematic) differences compared to the 5TT image (right figure, see crosshair).

Any ideas on why the ribbon thickness is different between the two parcellation images, and, how to generate a HCPMMP1 parcellation image with the same ribbon thickness as the 5TT image?

Cheers,
Arkiev

Hi Arkiev,

I’m not sure why this would happen although it looks like a local rather than a global problem - seems like the label is completely missing there so perhaps worth debugging the steps in the creation of the parcellation.

In the past, I’ve used the script from here to obtain satisfactory HCPMMP1 parcellations after running recon-all.

All the best,
Nick

Hi Nick,
Thanks for getting back to me so soon - your recommendation worked well :slight_smile:

The next step is to re-index the parcellation file to have nodes incrementing from 1. I am unsure how to address this with the available outputs - in particular, LUT_HCPMMP1.txt. This lookup table doesn’t seem to match up with the values in HCPMMP1.nii.gz (for example, node 28 is present in HCPMMP1.nii.gz but is absent from LUT_HCPMMP1.txt).

I have pasted the contents of LUT_HCPMMP1.txt below - is this a sensible output, or has something gone wrong?

Also, do you know where I can access the lut_in and lut_out files for labelconvert?

Again, thanks for your help!
